UNCLASSIFIED
MSG DTG 242133Z JAN 02
FROM CDRAMCOM, REDSTONE ARSENAL, AL //AMSAM-SF-A//
SUBJECT - SAFETY OF FLIGHT, TECHNICAL, RCS CSGLD-1860(R1), ALL H-47 SERIES
AIRCRAFT, INSPECTION OF THE ROTARY WING HEAD TIE BAR ASSEMBLY AND ROTOR
TACHOMETER, CH-47-02-02 (TB 1-1520-240-20-141).
NOTE
THIS MESSAGE IS ISSUED IAW AR 95-1, 1 SEP 97, CHAPTER 6. THIS MESSAGE HAS NOT
BEEN TRANSMITTED TO UNITS SUBORDINATE TO ADDRESSEES. ADDRESSEES SHOULD
IMMEDIATELY RETRANSMIT THIS MESSAGE TO ALL SUBORDINATE UNITS, ACTIVITIES OR
ELEMENTS AFFECTED OR CONCERNED. THE RETRANSMITTAL SHALL REFERENCE THE MESSAGE.
ACTION ADDRESSEES WILL IMMEDIATELY VERIFY THIS TRANSMISSION TO CDR, AMCOM, ATTN:
AMSAM-SF-A (SOF COMPLIANCE OFFICER).
1. PRIORITY CLASSIFICATION -
NOTE
IAW AR 95-1, PARAGRAPH 6-6A, MACOM COMMANDERS MAY AUTHORIZE TEMPORARY EXCEPTION
FROM MESSAGE REQUIREMENTS. EXCEPTION MAY ONLY OCCUR WHEN COMBAT OPERATIONS OR
MATTER OF LIFE OR DEATH IN CIVIL DISASTERS OR OTHER EMERGENCIES ARE SO URGENT
THAT THEY OVERRIDE THE CONSEQUENCES OF CONTINUED AIRCRAFT OPERATION.
A. AIRCRAFT IN USE - UPON RECEIPT OF THIS MESSAGE, MAKE THE FOLLOWING
ENTRIES ON THE DA FORM 2408-13-1. COMMANDERS WHO ARE UNABLE TO COMPLY WITH THE
REQUIREMENTS OF THIS MESSAGE WITHIN THE TIME FRAME SPECIFIED WILL UPGRADE THE
AFFECTED AIRCRAFT STATUS SYMBOL TO A RED //X//.
(1) FOR ALL H-47 - ENTER A RED HORIZONTAL DASH //-// STATUS SYMBOL WITH
THE FOLLOWING STATEMENT: "INSPECT TIE BAR ASSEMBLIES IAW CH-47-02-02 (TB 1-1520-
240-20-141) PRIOR TO THE NEXT FLIGHT."
(2) FOR ALL H-47 - ENTER A CIRCLED RED //X// STATUS SYMBOL WITH THE
FOLLOWING STATEMENT: "AIRCRAFT RESTRICTED TO 111 PERCENT TRANSIENT ROTOR SPEED
IAW CH-47-02-02 (TB 1-1520-240-20-141)."
(3) FOR H-47D AND H-47F ONLY - ENTER A RED DIAGONAL \\/\\ STATUS SYMBOL
WITH THE FOLLOWING STATEMENT: "REWORK ALL ROTOR TACHOMETERS IAW CH-47-02-02 (TB
1-1520-240-20-141) NLT 26 FEBRUARY 2002."
B. AIRCRAFT IN MAINTENANCE FACILITY -
(1) AIRCRAFT IN AVUM, AVIM OR DEPOT - SAME AS PARA 1A.
(2) AIRCRAFT AT CONTRACTOR FACILITY - BOEING WILL INSPECT DD 250
AIRCRAFT PRIOR TO THOSE AIRCRAFT DEPARTING FOR FERRY TO FINAL DESTINATION.
C. AIRCRAFT IN TRANSIT -
(1) SURFACE/AIR SHIPMENT - SAME AS PARA 1A.
(2) FERRY STATUS - SAME AS PARA 1A.
D. MAINTENANCE TRAINERS (CATEGORY A AND B) - COMPLY NLT 25 JANUARY 2004.
E. COMPONENT/PARTS IN STOCK AT ALL LEVELS (DEPOT AND OTHERS) INCLUDING WAR
RESERVES - UPON RECEIPT OF THIS MESSAGE, DEPOT AND MATERIEL ACTIVITY COMMANDERS
WILL ENSURE THE MATERIEL CONDITION TAGS OF ALL ITEMS IN ALL CONDITION CODES
LISTED IN PARAGRAPHS 6 AND 7 ARE ANNOTATED TO READ: " CH-47-02-02 (TB 1-1520-
240-20-141), INSPECTION OF TIE BAR ASSEMBLIES AND ROTOR TACHOMETERS NOT COMPLIED
WITH."
(1) WHOLESALE STOCK - N/A.
(2) RETAIL STOCK - UPON RECEIPT OF THIS MESSAGE, COMMANDERS AND FACILITY
MANAGERS MAINTAINING RETAIL STOCK AT INSTALLATION LEVEL AND BELOW SHALL CONTACT
THE SUPPORTED AVIATION UNIT TO PERFORM THE PROCEDURES REQUIRED IAW PARAGRAPHS 8
AND 9 ON SUSPECT MATERIEL. DISPOSE OF DISCREPANT MATERIEL IAW PARA 10. REPORT
COMPLIANCE WITH THIS MESSAGE IAW PARAGRAPH 14C(2) NLT 8 FEBRUARY 2002.
F. COMPONENTS/PARTS IN WORK (DEPOT LEVEL AND OTHERS) - DEPOT AND OTHER
MAINTENANCE ACTIVITY COMMANDERS WILL ENSURE ITEMS LISTED IN PARAGRAPHS 6 AND 7
ARE NOT ISSUED UNTIL THEY ARE IN COMPLIANCE WITH THIS MESSAGE.
2. TASK/INSPECTION SUSPENSE DATE -
A. COMPLETE THE INSPECTION IAW PARAGRAPH 8A PRIOR TO THE NEXT FLIGHT.
B. COMPLETE THE INSPECTION IAW PARAGRAPH 8B AT THE NEXT ROTOR HEAD REMOVAL,
BUT NLT THAN THE NEXT PHASE INSPECTION OR 25 JANUARY 2004, WHICHEVER OCCURS
FIRST.
C. COMPLETE THE INSPECTION FOR ALL H-47D/F AIRCRAFT IAW PARA 8C NLT 25
FEBRUARY 2002.
3. TAMMS REPORTING COMPLIANCE SUSPENSE DATE - REPORT COMPLIANCE IAW PARA 14A(1)
NLT 31 JANUARY 2002.
4. SUMMARY OF PROBLEM -
A. HISTORY -

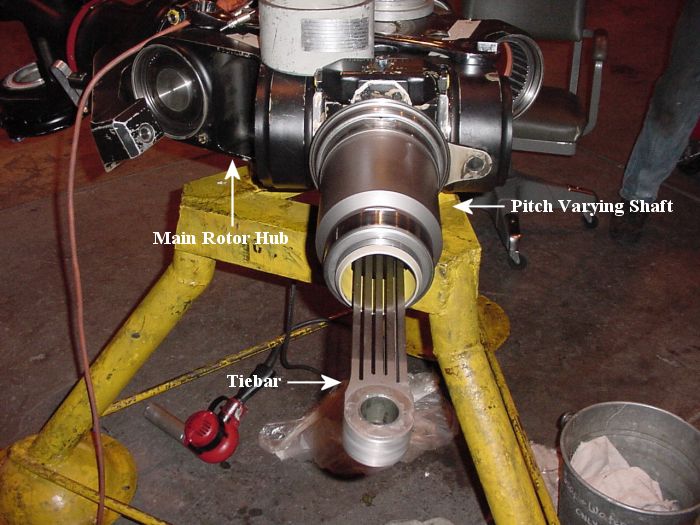

(1) TIE BAR PLATE FAILURE - REPORTS FROM THE FIELD ON TIE BAR
ASSEMBLIES INDICATE THAT TIE BAR PLATE CRACKS HAVE OCCURRED MUCH EARLIER THAN
THE RETIREMENT LIFE OF 8693 HOURS. EVEN THOUGH THE TIE BAR ASSEMBLY IS
CURRENTLY INSPECTED AT 1200 HOURS AND AT THE 2400 HOUR OVERHAUL, IT IS POSSIBLE
THAT SOME FIELDED TIE BARS MAY HAVE TIE BAR PLATES WHICH HAVE CRACKED.
(2) TIE BAR OVER SPEED DAMAGE - TESTING HAS SHOWN THAT INITIAL
DEFORMATION OF THE ROTARY WING HEAD TIE BAR ASSEMBLY MAY OCCUR AT A POINT JUST
ABOVE 111 PERCENT ROTOR RPM. CURRENTLY, THE 145ES008 ROTOR TACHOMETERS
(ALL H-47D/F) AND MULTI FUNCTION DISPLAYS (MFD) (MH-47E) INDICATE 115 PERCENT
RPM AS THE MAXIMUM TRANSIENT ROTOR SPEED LIMIT. BECAUSE OF THIS, SOME TIE BAR
ASSEMBLIES MAY HAVE ALREADY BEEN DAMAGED DUE TO EXCEEDING 111 PERCENT RPM.
B. MANPOWER/DOWNTIME AND FUNDING IMPACTS - SEE PARA 12.
C. THE PURPOSE OF THIS MESSAGE IS TO -
(1) TIE BAR ASSEMBLY -
(A) REDUCE THE RETIREMENT LIFE OF THE ASSEMBLY TO 4800 HOURS TIME
SINCE NEW (TSN).
(B) REPLACE ALL ASSEMBLIES WITH MORE THAN 4800 HOURS TSN.
(C) INSPECT ALL ASSEMBLIES WITH LESS THAN 4800 HOURS TSN FOR
CRACKS.
(2) MAXIMUM TRANSIENT ROTOR SPEED LIMIT -
(A) REQUIRE REWORK OF ALL 145ES008 ROTOR TACHOMETERS (ALL H-47D/F)
AND UPDATE SOFTWARE (MH-47E) TO INDICATE THE MAX TRANSIENT ROTOR SPEED OF 111
PERCENT RPM.
(B) CHANGE THE MAX TRANSIENT ROTOR SPEED TO BE 111 PERCENT RPM IN
THE OPERATOR'S MANUALS.
(C) ESTABLISH A CONDITIONAL INSPECTION OF THE TIE BAR ASSEMBLY IF
111 PERCENT ROTOR SPEED IS EXCEEDED.
5. END ITEMS TO BE INSPECTED - ALL H-47 SERIES AIRCRAFT.
6. ASSEMBLY COMPONENTS TO BE INSPECTED -
NOMENCLATURE PART NO. NSN
ROTOR HEAD ASSEMBLY 145R2003-ALL ALL
ROTOR HEAD ASSEMBLY 145R2004-ALL ALL
TIE BAR ASSEMBLY 114R2155-1 1615-00-740-6480
7. PARTS TO BE INSPECTED -
NOMENCLATURE PART NO. NSN
TACHOMETER INDICATOR 145ES008-2 6680-01-127-2481
8. INSPECTION PROCEDURES -
NOTE
READ AND COMPLETE ALL PARAGRAPH 8 INSPECTION
PROCEDURES FOR EACH PART PRIOR TO PROCEEDING
TO THE CORRECTION PROCEDURES IN PARAGRAPH 9.
A. PRIOR TO THE NEXT FLIGHT, INSPECT THE ROTOR HEAD DA FORM 2408-16 TO
DETERMINE THE TSN OF ALL TIE BAR ASSEMBLIES.
(1) IF TSN IS LESS THAN 4800 HOURS -
(A) CHANGE THE ROTOR HEAD DA FORM 2408-16 TO INDICATE A NEW
RETIREMENT LIFE FOR THE TIE BAR ASSEMBLY OF 4800 HRS TSN.
(B) CLEAR THE RED HORIZONTAL DASH //-// ENTRY REQUIRED IAW PARA
1A(1) OF THIS MESSAGE AND ENTER A NEW RED HORIZONTAL DASH //-// STATUS SYMBOL
WITH THE FOLLOWING STATEMENT: "INSPECT ALL TIE BAR ASSEMBLIES IAW PARA 8B, CH-
47-02-02 (TB 1-1520-240-20-141) AT THE NEXT ROTOR HEAD REMOVAL, BUT NLT THAN THE
NEXT PHASE INSPECTION OR 25 JANUARY 2002."
(2) IF TSN IS EQUAL TO OR GREATER THAN 4800 HOURS, CORRECT IAW PARA 9A.
NOTE
ROTOR HEADS RECEIVED FROM SUPPLY AFTER THE
MSG DTG WHICH HAVE ZERO HOURS TIME SINCE
OVERHAUL (TSO) DO NOT REQUIRE INSPECTION
OF THE TIE BAR ASSEMBLIES IAW PARA 8B.
B. AT THE NEXT ROTOR HEAD REMOVAL, BUT NLT THAN THE NEXT PHASE INSPECTION
OR 25 JANUARY 2002, WHICHEVER OCCURS FIRST, INSPECT THE TIE BAR ASSEMBLIES AS
FOLLOWS -
(1) REMOVE TIE BAR ASSEMBLIES IAW TM 55-1520-240-23, TASK 5-23.1
(H-47D/F), OR TM 1-1520-252-23, TASK 5-30 (MH-47E).
NOTE
THE PROCEDURE IN PARA 8B(2) IS IAW CHANGE
NUMBER 47 FOR THE H-47D/F, AND CHANGE
NUMBER 17 FOR THE MH-47E.
(2) INSPECT TIE BAR ASSEMBLIES IAW TM 55-1520-240-23, TASK 5-23.1.1
(H-47D/F), OR TM 1-1520-252-23, TASK 5-31 (MH-47E).
(3) INSPECT THE FOUR TIE BAR SLOTS AS FOLLOWS - USING A BORESCOPE WITH
A 0.110 INCH DIAMETER BY 6 INCH LENGTH PROBE, INSERT THE BORESCOPE PROBE IN EACH
SLOT. EXAMINE THE SLOTS FOR CRACKS ALONG THE FULL DEPTH AND SPAN.
(4) IF A TIE BAR ASSEMBLY FAILS AN INSPECTION IAW PARA 8B, CORRECT IAW
PARA 9A.
(5) IF NO DAMAGE IS FOUND -
(1) REINSTALL THE ROTARY WING HEAD TIE BAR ASSEMBLIES IAW TM 55-
1520-240-23, TASK 5-23.2 (H-47D/F) OR TM 1-1520-252-23, TASK 5-32 (MH-47E).
(2) CLEAR THE RED HORIZONTAL DASH //-// ENTRY.
C. PRIOR TO 25 FEBRUARY 2002. INSPECT THE AIRCRAFT ROTOR TACHOMETER -
(1) FOR THE 145ES008-2 ROTOR TACHOMETER (H-47D/F) CORRECT IAW
PARA 9B.
NOTE
CURRENTLY ALL 145ES008-2 ROTOR TACHOMETERS
ARE MARKED TO INDICATE THE MAXIMUM TRANSIENT
ROTOR SPEED AT 115 PERCENT. EVENTUALLY NEW
ROTOR TACHOMETERS WILL BE AVAILABLE THAT WILL
BE MARKED AT 111 PERCENT.
(2) FOR THE MULTI FUNCTION DISPLAY (MFD) SOFTWARE (MH-47E) - CORRECT
IAW PARA 9C.
9. CORRECTION PROCEDURES -
NOTE
ENSURE THAT REPLACEMENT TIE BAR ASSEMBLIES
ARE INSPECTED AND IN COMPLIANCE WITH THIS
SOF PRIOR TO INSTALLATION.
A. IF THE TSN IS EQUAL TO OR MORE THAN 4800 HRS, OR IF A TIE BAR ASSEMBLY
FAILS AN INSPECTION IAW PARA 8B -
(1) CHANGE THE ROTOR HEAD DA FORM 2408-16 TO INDICATE A NEW RETIREMENT
LIFE FOR TIE BAR ASSEMBLY OF 4800 HRS TSN.
(2) CLEAR THE RED HORIZONTAL DASH //-// ENTRY AND ENTER A RED //X//
STATUS SYMBOL WITH THE FOLLOWING STATEMENT: "REPLACE THE ROTARY WING HEAD TIE
BAR ASSEMBLIES IAW CH-47-02-02 (TB 1-1520-240-20-141)."
(3) SUBMIT A CATEGORY I DEFICIENCY REPORT ON ANY TIE BAR ASSEMBLY THAT
HAS FAILED THE INSPECTION REQUIRED IAW PARA 8B DUE TO CRACKS.
(4) REPLACE THE ROTARY WING HEAD TIE BAR ASSEMBLIES IAW TM 55-1520-240-
23, TASK 5-23.2 (ALL H-47D/F) OR TM 1-1520-252-23, TASK 5-32 (MH-47E).
(5) CLEAR THE RED //X// ENTRY.
B. FOR ALL H-47D AND H-47F HELICOPTERS - REWORK ALL ROTOR TACHOMETERS AS
FOLLOWS -
(1) REMOVE ROTOR TACHOMETERS FROM THE AIRCRAFT IAW TM 55-1520-240-23,
TASK 8-88.
(2) ON A SUITABLE WORKBENCH, CLEAN GLASS COVER WITH ISOPROPYL ALCOHOL,
TT-I-735 (OR EQUIVALENT).
(3) APPLY A 3/16-INCH HIGH BY 1/16-INCH WIDE PIECE OF RED TAPE (NSN
7510-00-550-7126 OR EQUIVALENT) AT THE 111 PERCENT RPM RANGE MARKING ON THE
GLASS FACE OF EACH ROTOR TACHOMETER.
(4) PAINT A WHITE INDEX MARK NOT OVER 1/16 INCH WIDE ACROSS THE JOINT
BETWEEN THE GLASS AND THE CASE AT THE BOTTOM OF THE CENTER (6 O'CLOCK) POSITION
USING MIL-L-19537 WHITE LACQUER (OR EQUIVALENT).
(5) APPLY A COAT OF MIL-V-173 VARNISH (OR EQUIVALENT) OVER THE TAPE AND
ALLOW TO DRY.
(6) REINSTALL THE ROTOR TACHOMETERS IN THE AIRCRAFT IAW TM 55-1520-240-
23, TASK 8-89.
(7) AFTER COMPLETION OF THE MODIFICATION OF BOTH ROTOR TACHOMETERS, THE
RED DIAGONAL \\/\\ AND CIRCLED RED //X// ENTRIES WILL BE CLEARED.
C. FOR ALL MH-47E HELICOPTERS -
(1) A SOFTWARE CHANGE WILL BE DEVELOPED TO INCORPORATE THE 111 PERCENT
MAXIMUM TRANSIENT ROTOR SPEED LIMIT.
(2) AFTER INSTALLATION OF THE NEW AVIONICS SUITE, THE CIRCLED RED //X//
ENTRIES WILL BE CLEARED.
10. SUPPLY/PARTS AND DISPOSITION -
A. PARTS REQUIRED - ITEMS CITED IN PARAGRAPHS 6 MAY BE REQUIRED TO REPLACE
DEFECTIVE ITEMS.
B. REQUISITIONING INSTRUCTIONS - REQUISITION REPLACEMENT PARTS USING
NORMAL SUPPLY PROCEDURES. ALL REQUISITIONS SHALL USE PROJECT CODE (CC 57-59)
"X13" (X-RAY, ONE, THREE).
NOTE
PROJECT CODE "X13" IS REQUIRED TO TRACK
AND ESTABLISH A DATA BASE OF STOCK FUND
EXPENDITURES INCURRED BY THE FIELD AS A
RESULT OF MESSAGE ACTIONS.
C. BULK AND CONSUMABLE MATERIALS - THE FOLLOWING MATERIALS WILL BE
REQUIRED -
(1) TAPE, PRESSURE SENSITIVE ADHESIVE, COLOR RED, P/N L-T-90, NSN
7510-00-550-7126(OR EQUIVALENT).
(2) VARNISH, P/N MIL-V-173 (OR EQUIVALENT), NSN 8010-00-180-6343.
(3) LACQUER, WHITE, COLOR NO. 17925(OR EQUIVALENT), P/N
MIL-L-19537 (OR EQUIVALENT), NSN 8010-00-935-6608.
(4) ALCOHOL, ISOPROPYL, COMMERCIAL GRADE, P/N TT-I-735 (OR
EQUIVALENT), NSN 6810-00-753-4993.
(5) BOLT, P/N 114R2162-1, NSN 5306-00-926-5684.
(6) NUT, SELF-LOCK, P/N MS21083N4, NSN 5310-00-903-8282.
(7) BOLT, P/N AN4H30A, NSN 5306-00-182-2022.
(8) SEAL, P/N 114R2142-3, NSN 5330-00-913-0933.
(9) SEAL, P/N 114RS215-1, NSN 5330-00-248-5142.
D. DISPOSITION -
(1) IF CRACKS ARE FOUND IN THE TIE BAR ASSEMBLY, DISPOSITION
INSTRUCTIONS WILL BE PROVIDED UPON RECEIPT OF THE CATEGORY I DEFICIENCY REPORT.
(2) CONTACT THE LOG POC IN PARA 16B FOR DISPOSITION INSTRUCTION FOR
ALL OTHER TIE BAR ASSEMBLIES THAT FAIL THE INSPECTIONS IAW PARA 8 OF THIS
MESSAGE.
E. DISPOSITION OF HAZARDOUS MATERIAL - N/A.
11. SPECIAL TOOLS AND FIXTURES REQUIRED - AS REQUIRED.
12. APPLICATION -
A. CATEGORY OF MAINTENANCE - AVUM. AIRCRAFT DOWNTIME WILL BE CHARGED TO
AVUM MAINTENANCE.
B. ESTIMATED TIME REQUIRED -
(1) TIME TO COMPLETE RECORDS CHECK - TOTAL OF 0.5 HOURS USING 1
PERSON.
(2) TIME TO COMPLETE INSPECTION OF THE TIE BAR ASSY -
(A) TOTAL OF 124 MAN-HOURS USING 8 PERSONS.
(B) TOTAL OF 20.0 HOURS DOWNTIME FOR ONE END ITEM. DOWNTIME
INCLUDES TIME REQUIRED MAINTENANCE TEST FLIGHT.
(3) TIME FOR TACHOMETER REWORK -
(A) TOTAL OF 1 MAN-HOURS USING 1 PERSONS.
(B) TOTAL OF 1 HOURS DOWNTIME FOR ONE END ITEM.
C. ESTIMATED COST IMPACT TO THE FIELD -
NOMENCLATURE PART NO./NSN QTY COST EA. TOTAL $
TIE BAR ASSEMBLY 114R2155-1 6 $5675.15 $34,050.90
1615-00-740-6480
TIE BAR PIN 114R2168-3 6 33.34 200.04
1615-00-740-6477
TIE BAR PIN 114R2168-4 6 63.05 378.30
1615-01-115-3619
TOTAL COST PER AIRCRAFT = $34,692.24
D. TB/MWOS TO BE APPLIED PRIOR TO OR CONCURRENTLY WITH THIS INSPECTION -
N/A.
E. PUBLICATIONS WHICH REQUIRE CHANGE AS A RESULT OF THIS INSPECTION - THE
FOLLOWING PUBLICATIONS SHALL BE CHANGED TO REFLECT THIS MESSAGE. A COPY OF THIS
MESSAGE SHALL BE INSERTED IN THE APPROPRIATE TM AS AUTHORITY TO IMPLEMENT THE
CHANGE UNTIL THE PRINTED CHANGE IS RECEIVED.
(1) TM 55-1520-240-10, OPERATORS MANUAL FOR ARMY CH-47D HELICOPTER -
CHANGE MAXIMUM TRANSIENT ROTOR SPEED LIMIT TO 111 PERCENT RPM.
(2) TM 55-1520-240-23, AVIATION UNIT AND AVIATION INTERMEDIATE
MAINTENANCE MANUAL, CH-47D HELICOPTER -
(A) TASK 1-91, PAGE 1-284, CHANGE THE RETIREMENT SCHEDULE HOURS
FOR THE FORWARD AND AFT TIE BAR ASSEMBLY, P/N 114R2155-1, TO BE 4800 HOURS TSN.
(B) ADD THE FOLLOWING CONDITIONAL INSPECTION TO TASK 1-92.
(1) THE INSPECTION FREQUENCY SHALL READ - "WHEN ROTOR RPM
EXCEEDS 111 PERCENT, BUT DOES NOT EXCEED 115 PERCENT RPM."
(2) THE INSPECTION REQUIREMENT SHALL READ - "INSPECT THE
ROTOR HEAD TIE BAR ASSEMBLIES PER TASK 5-23-1.1 AT THE NEXT ROTOR HEAD REMOVAL,
BUT NLT COMPLETION OF NEXT PHASED MAINTENANCE".
(C) TASK 1-92, REFERENCE 55 - CHANGE "SPEED" TO READ "RPM".
(D) TASK 5-23.1.1, PAGE 5-94.2.1, ADD "BORESCOPE" TO TOOLS LIST.
(E) TASK 5-23.1.1, PAGE 5-94.2.1, ADD PARA 3 AS FOLLOWS -
"3. USE A BORESCOPE WITH A RIGID RIGHT ANGLE PROBE TO
INSPECT THE FOUR SLOTS IN THE TIE BAR ASSEMBLY AS
FOLLOWS:
NOTE
RECOMMEND THE PROBE NOT EXCEED 0.110
INCH DIAMETER.
A. INSERT THE BORESCOPE PROBE IN EACH SLOT.
EXAMINE THE SLOTS FOR CRACKS ALONG THE FULL
DEPTH AND SPAN.
B. REJECT TIE BAR ASSEMBLY IF ANY CRACKS ARE
DETECTED."
(3) TM 1-1520-252-10, OPERATOR'S MANUAL FOR ARMY MH-47E HELICOPTER -
CHANGE MAXIMUM TRANSIENT ROTOR SPEED LIMIT TO 111 PERCENT RPM.
(4) TM 1-1520-252-23, AVIATION UNIT AND AVIATION INTERMEDIATE
MAINTENANCE MANUAL, MH-47E HELICOPTER -
(A) TASK 1-99, PAGE 3, CHANGE THE RETIREMENT SCHEDULE HOURS FOR
THE FORWARD AND AFT TIE BAR ASSEMBLY, P/N 114R2155-1, TO BE 4800 HOURS TSN.
(B) ADD THE FOLLOWING CONDITIONAL INSPECTION TO TASK 1-100.
(1) THE INSPECTION FREQUENCY SHALL READ - "WHEN ROTOR RPM
EXCEEDS 111 PERCENT, BUT DOES NOT EXCEED 115 PERCENT RPM."
(2) THE INSPECTION REQUIREMENT SHALL READ - "INSPECT THE
ROTOR HEAD TIE BAR ASSEMBLIES PER TASK 5-31 AT THE NEXT ROTOR HEAD REMOVAL, BUT
NLT COMPLETION OF NEXT PHASED MAINTENANCE".
(C) TASK 1-100, REFERENCE 56 - CHANGE "SPEED" TO READ "RPM".
13. REFERENCES -
A. DA PAM 738-751, 15 MAR 99.
B. TM 55-1520-240-23, AVIATION UNIT AND AVIATION INTERMEDIATE MAINTENANCE
MANUAL, CH-47D HELICOPTER.
C. TM 55-1520-240-10, OPERATOR'S MANUAL FOR ARMY CH-47D HELICOPTER.
E. TM 1-1520-252-23, AVIATION UNIT AND AVIATION INTERMEDIATE MAINTENANCE
MANUAL, MH-47E HELICOPTER.
F. TM 1-1520-252-10, OPERATOR'S MANUAL FOR ARMY MH-47E HELICOPTER.
14. RECORDING AND REPORTING REQUIREMENTS -
A. AIRCRAFT -
(1) TAMMS REPORTING COMPLIANCE SUSPENSE - UPON ENTERING REQUIREMENTS
OF THIS MESSAGE ON DA FORM 2408-13-1 FOR ALL EFFECTED AIRCRAFT, COMMANDERS WILL
FORWARD A PRIORITY MESSAGE, FAX OR EMAIL TO CDR, AMCOM, ATTN: AMSAM-SF-A (SOF
COMPLIANCE OFFICER), REDSTONE ARSENAL, AL 35898-5000, IAW AR 95-1, NLT DATE
SPECIFIED IN PARAGRAPH 3. FAX NUMBER IS DSN 897-2111 OR (256) 313-2111. EMAIL
ADDRESS IS "SAFEADM@REDSTONE.ARMY.MIL". THE REPORT WILL CITE THIS MESSAGE AND
TB NUMBER, DATE OF ENTRY IN DA FORM 2408-13-1, THE AIRCRAFT MISSION DESIGN
SERIES AND SERIAL NUMBERS OF AIRCRAFT IN NUMERICAL ORDER.
(2) TASK/INSPECTION REPORTING SUSPENSE - N/A.
B. WHOLESALE SPARE PARTS/ASSEMBLIES - N/A.
C. RETAIL SPARE PARTS/ASSEMBLIES -
(1) REPORTING MESSAGE RECEIPT - N/A.
(2) TASK/INSPECTION REPORTING SUSPENSE - COMMANDERS AND FACILITY
MANAGERS WILL REPORT INSPECTION RESULTS TO THE LOGISTICAL POINT OF CONTACT IN
PARA 16B NLT DATE SPECIFIED IN PARAGRAPH 1E(2). REPORT THE QUANTITY INSPECTED
BY CONDITION CODE AND THE RESULTING CONDITION CODE. REPORT BY EMAIL OR FAX AND
PROVIDE LOCAL POINT OF CONTACT.
D. THE FOLLOWING FORMS ARE APPLICABLE AND ARE TO BE COMPLETED IAW DA PAM
738-751, 15 MAR 99 -
NOTE
ULLS-A USERS WILL USE APPLICABLE "E" FORMS.
(1) DA FORM 2408-5-1, EQUIPMENT MODIFICATION RECORD. (TIE BAR
ASSEMBLY).
(2) DA FORM 2408-13, AIRCRAFT STATUS INFORMATION RECORD.
(3) DA FORM 2408-13-1, AIRCRAFT INSPECTION AND MAINTENANCE RECORD.
(4) DA FORM 2408-15, HISTORICAL RECORD FOR AIRCRAFT (TO RECORD OF
ROTOR TACHOMETER PORTION OF MESSAGE).
(5) DA FORM 2408-16, AIRCRAFT COMPONENT HISTORICAL RECORD.
(6) DA FORM 2410, COMPONENT REMOVAL AND REPAIR/OVERHAUL RECORD (ONLY
IF ROTOR HEAD OR TIE BAR ASSEMBLIES ARE REMOVED/REPLACED).
(7) DD FORM 1574/DD FORM 1574-1, SERVICEABLE TAG/LABEL - MATERIEL
(COLOR YELLOW). ANNOTATE REMARKS BLOCK WITH "INSPECTED SERVICEABLE IAW CH-47-02-
02 (TB 1-1520-240-20-141)."
(8) DD FORM 1577-2/DD FORM 1577-3, UNSERVICEABLE (REPARABLE) TAG/LABEL
- MATERIEL (COLOR GREEN). ANNOTATE REMARKS BLOCK WITH UNSERVICEABLE IAW CH-47-
02-02 (TB 1-1520-240-20-141)."
15. WEIGHT AND BALANCE - N/A.
16. POINTS OF CONTACT -
A. TECHNICAL POINT OF CONTACT FOR THIS MESSAGE IS MR. STEVE PROSISE,
AMSAM-RD-AE-I-P-C, DSN 897-3377 OR (256) 313-3377, FAX IS DSN 897-4348 OR (256)
313-4348. EMAIL IS "STEVE.PROSISE@REDSTONE.ARMY.MIL".
B. LOGISTICAL POC IS MR. BILL OLSON, SFAE-AV-CH-L, DSN 897-3379 OR (256)
313-3379, FAX IS EXT 4348. EMAIL IS "WILLIAM.OLSON@PEOAVN.REDSTONE.ARMY.MIL".
C. WHOLESALE MATERIEL POC (SPARES) IS MIGUEL RODRIGUEZ, AMSAM-MMC-AV-CA,
DSN 897-1508 OR (256) 313-1508, FAX IS DSN 897-1106. EMAIL IS
"MIGUEL.RODRIGUEZ@REDSTONE.ARMY.MIL".
D. FORMS AND RECORDS POC FOR THIS MESSAGE IS MS. ANN WALDECK, AMSAM-MMC-
MA-NM DSN 746-5564 OR (256) 876-5564, FAX IS DSN 746-4904. EMAIL IS
ANN.WALDECK@REDSTONE.ARMY.MIL".
E. SAFETY POINTS OF CONTACT ARE -
(1) PRIMARY - MR. HARRY TRUMBULL (SAIC), AMSAM-SF-A, DSN 897-2095 OR
(256) 313-2095, FAX IS DSN 895-2111 OR (256) 313-2111. EMAIL IS
"HARRY.TRUMBULL@REDSTONE.ARMY.MIL".
(2) ALTERNATE - MR. RUSS PEUSCH, AMSAM-SF-A, DSN 788-8632 OR (256)
842-8632, FAX IS DSN 897-2111 OR (256) 313-2111. EMAIL IS
"RUSSELL.PEUSCH@REDSTONE.ARMY.MIL".
F. FOREIGN MILITARY SALES RECIPIENTS REQUIRING CLARIFICATION OF ACTION
ADVISED BY THIS MESSAGE SHOULD CONTACT - MR. RONNIE W. SAMMONS, AMSAM-SA-CS-NF,
DSN 897-6856 OR (256) 313-6856. DATAFAX IS DSN 897-6630 OR (256) 313-6630.
EMAIL IS "RONNIE.SAMMONS@REDSTONE.ARMY.MIL".
G. AFTER HOURS CONTACT THE AMCOM COMMAND OPERATIONS CENTER (COC) DSN 897-
2066/7 OR (256) 313-2066/7.
|
