The CH-47 Chinook Forward Pylon





             Located in the Forward Pylon Area of the CH-47 Chinook are the Forward Transmission Package, First and Second Stage Flight Control Mixing Units, "Boomerrang" Bellcrank, Forward Pivoting and Swiveling Upper Dual Boost Actuators, Number One Flight Boost Hydraulic Power Control Module, Number One Flight Boost Hydraulic System Reservoir, Number One Synchronizing Shaft (Sync or Drive Shaft), Number One Power Transfer Unit (PTU), Brake Accumulator, and various odds and ends that allow the Chinook helicopter to function.

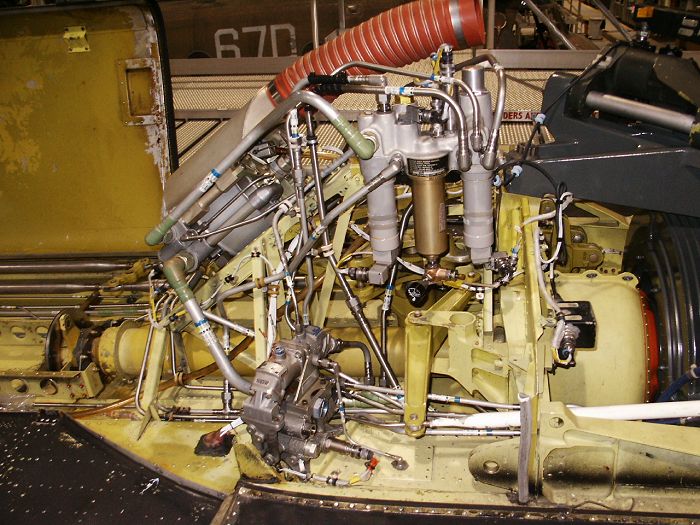

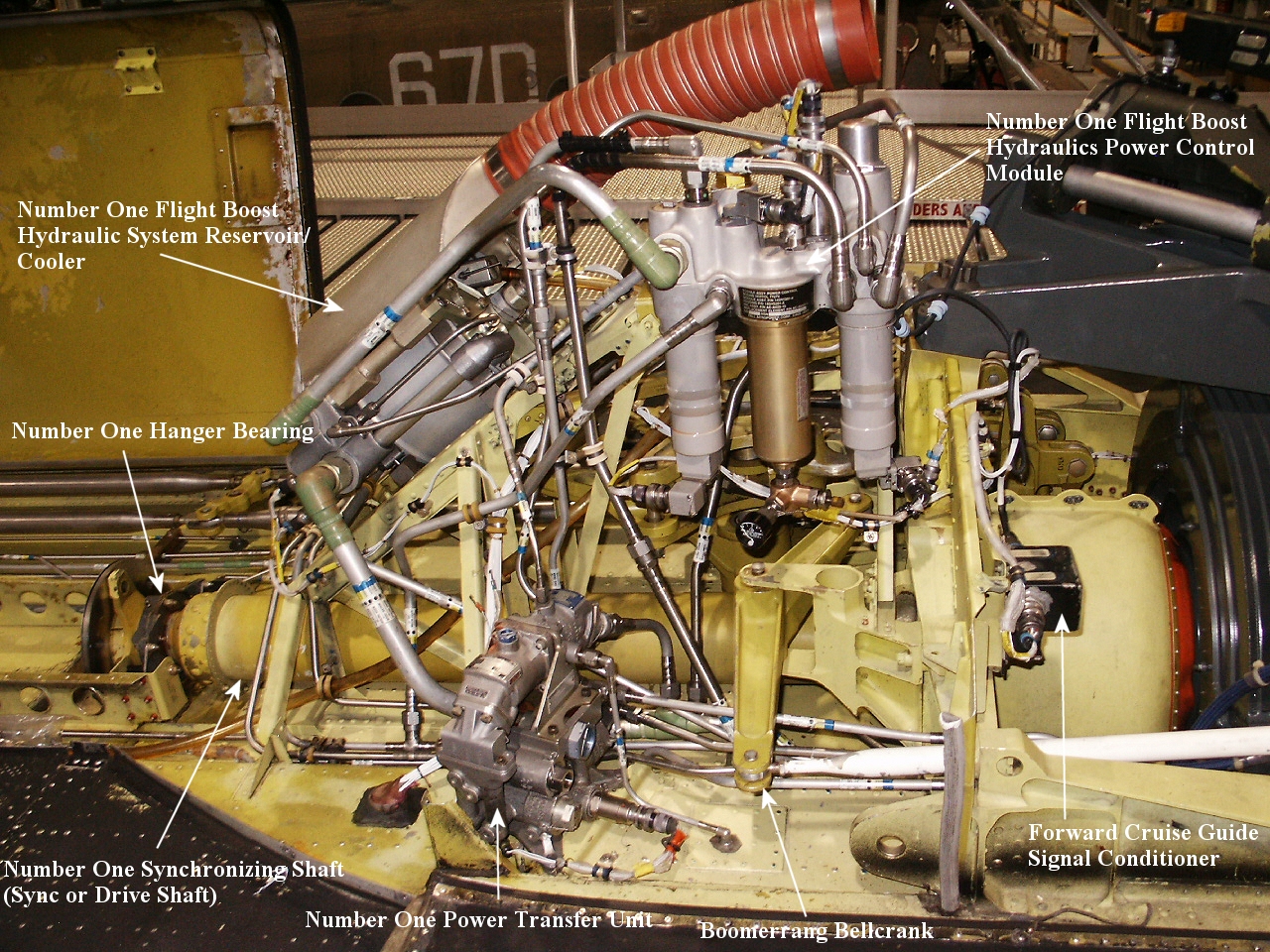

The right hand side of the CH-47D Forward Pylon.

             The right hand side of the CH-47D Forward Pylon. Click-N-Go Here to view a larger version.

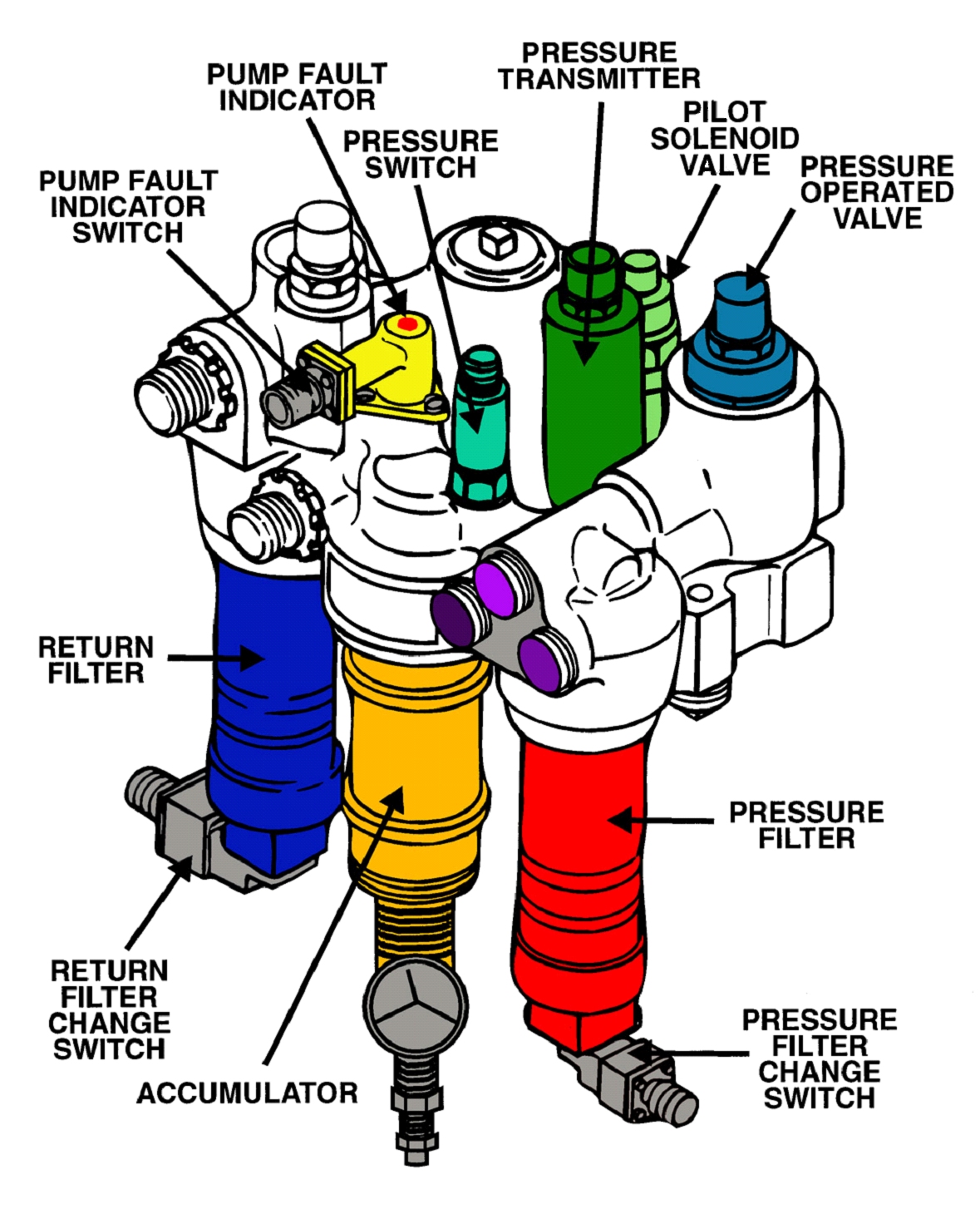

Components mounted on the Flight Boost Hydraulics Power Control Module.

             Components mounted on the Flight Boost Hydraulics Power Control Module. Click-N-Go Here to view a larger version.

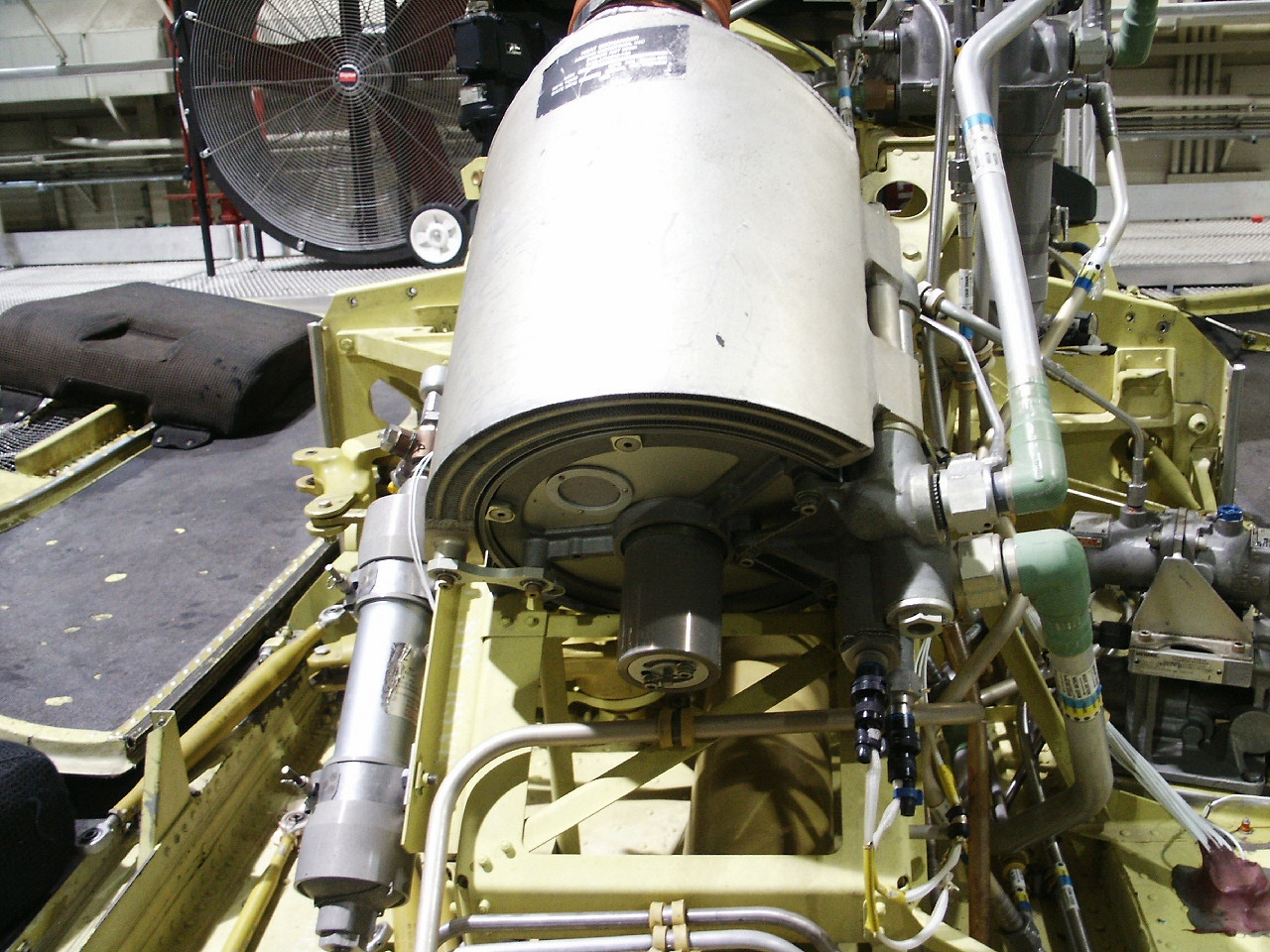

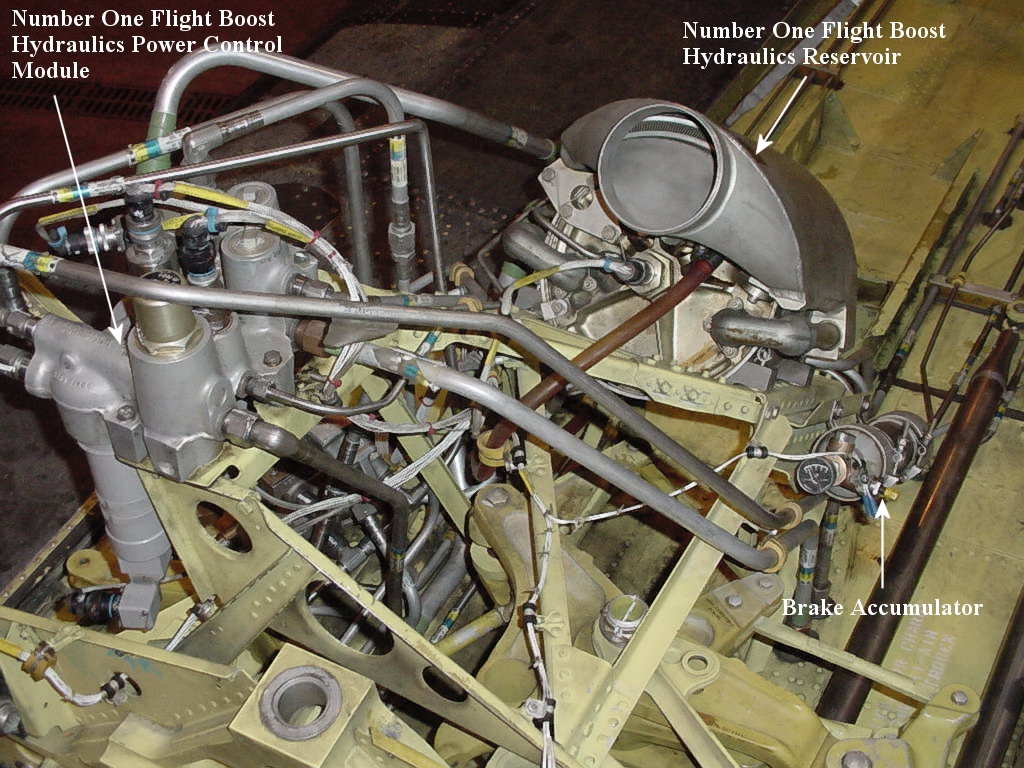

The front side of the Number One Flight Control Hydraulics Reservoir.

             The front side of the Number One Flight Control Hydraulics Reservoir. Click-N-Go Here to view a larger version.

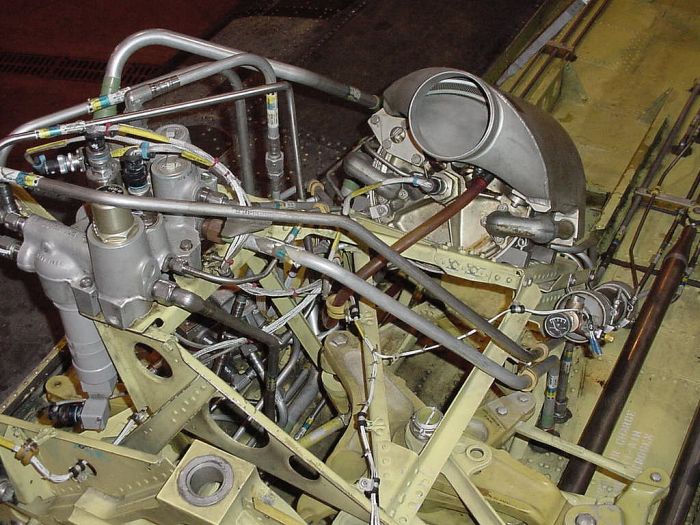

The rear portion of the Number One Flight Boost Hydraulics Reservoir.

             The rear portion of the Number One Flight Boost Hydraulics Reservoir. Click-N-Go Here to view a larger version.

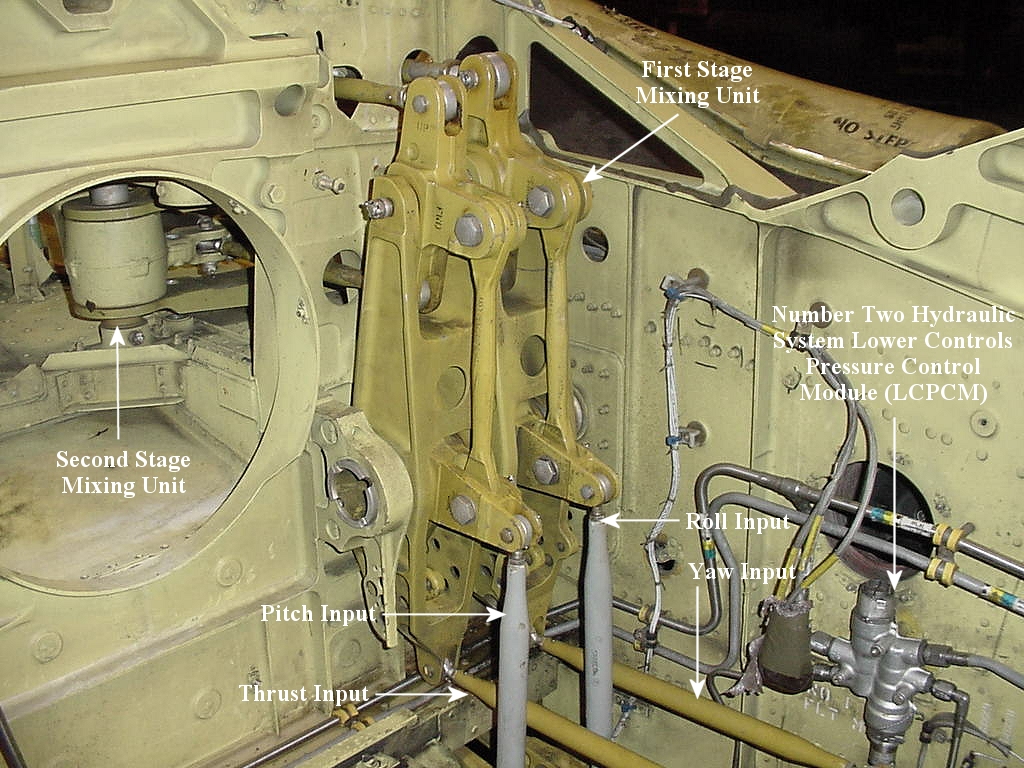

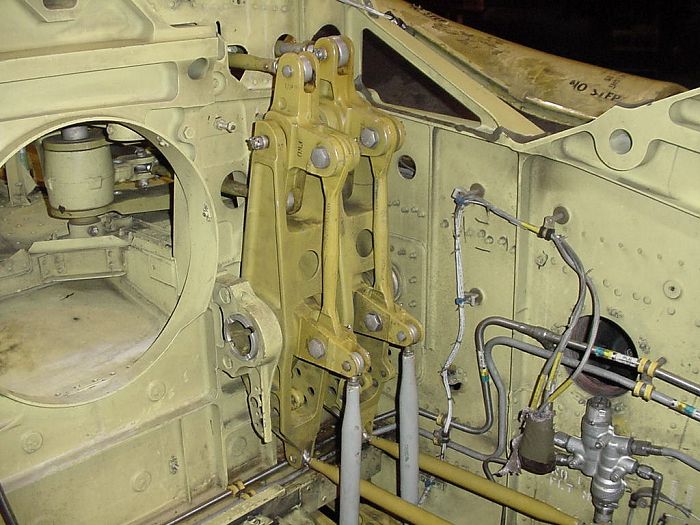

The First Stage Mixing Unit.

             The First Stage Mixing Unit. Click-N-Go Here to view a larger version.

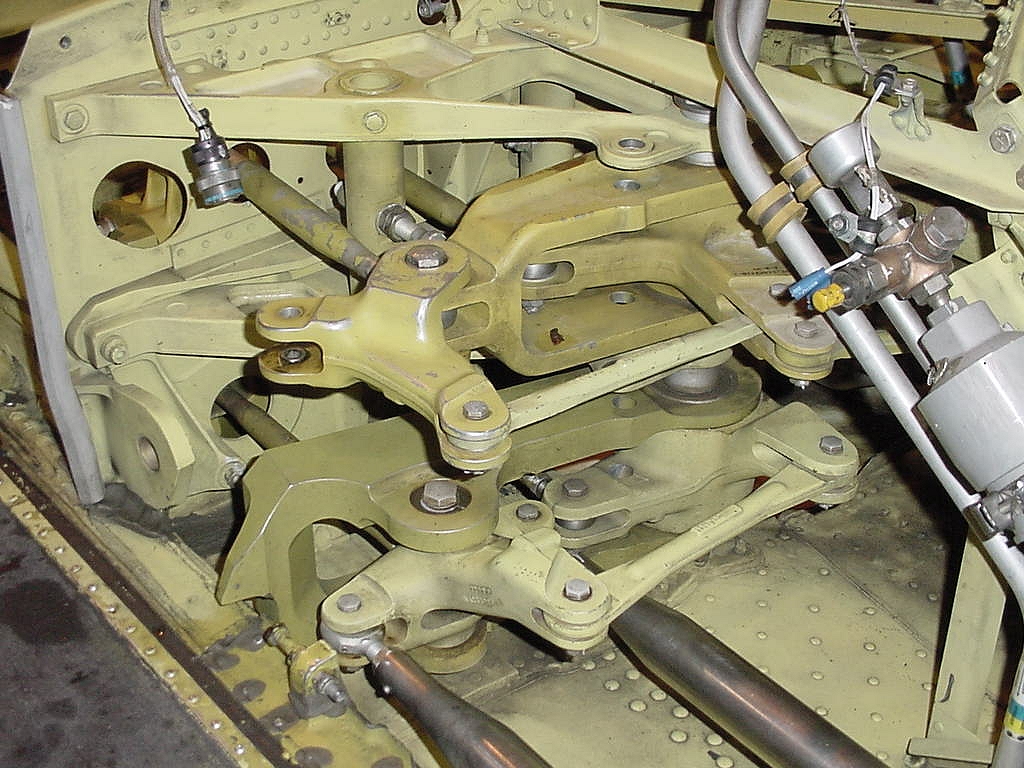

The Second Stage Mixing Unit.

             The Second Stage Mixing Unit. Click-N-Go Here to view a larger version.

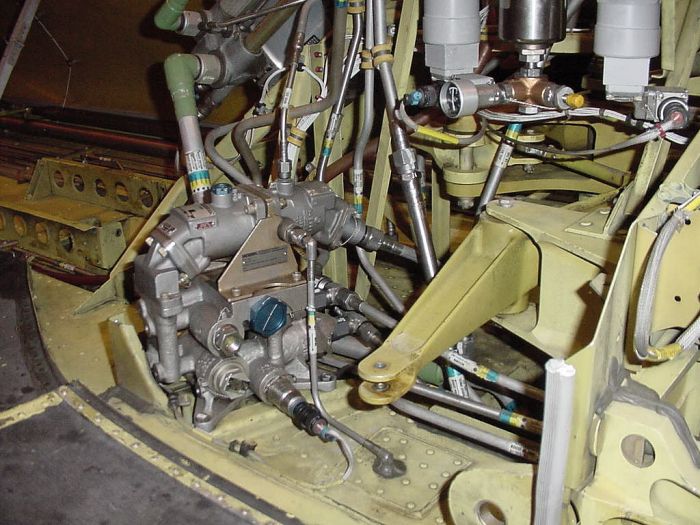

The Number One Power Transfer Unit (PTU).

             The Number One Power Transfer Unit (PTU).
