Droop Stop Inspection Diagrams

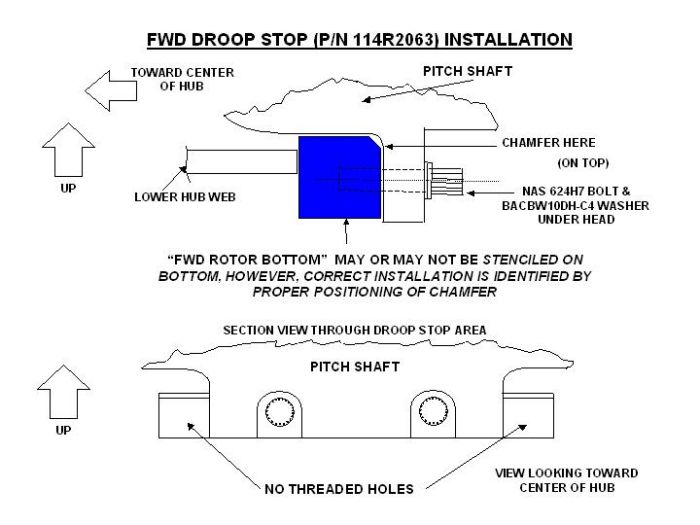

Droop Stop Inspection Diagram - Correct installation of Forward Droop Stop.

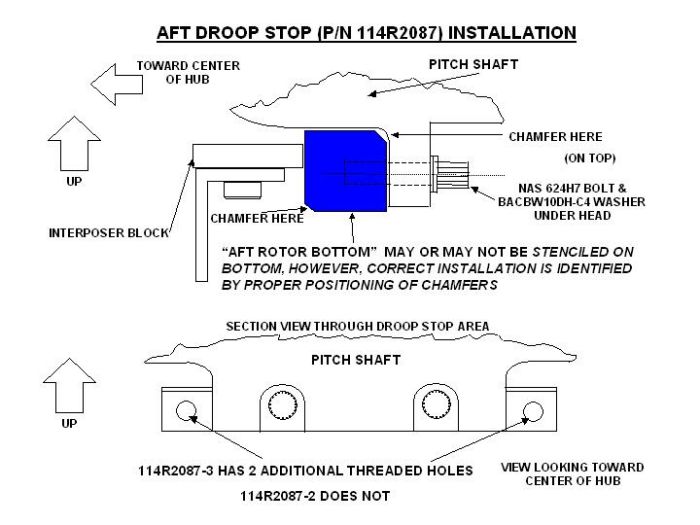

Droop Stop Inspection Diagram - Correct installation of Aft Droop Stop.

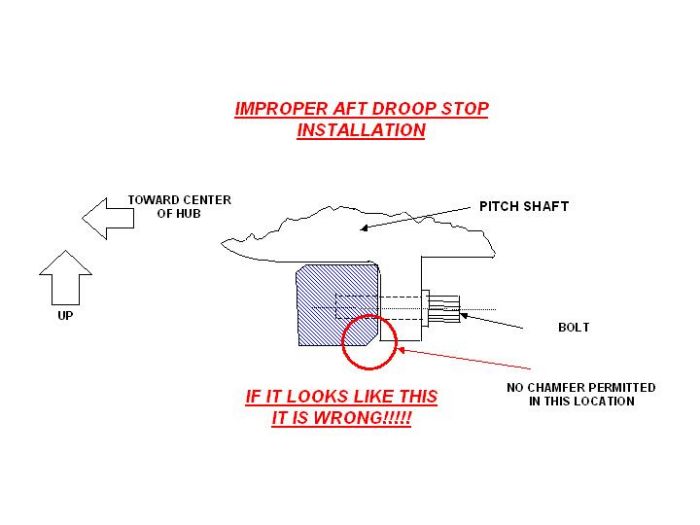

Droop Stop Inspection Diagram - Improper installation of Aft Droop Stop, applies to Forward Head as well.

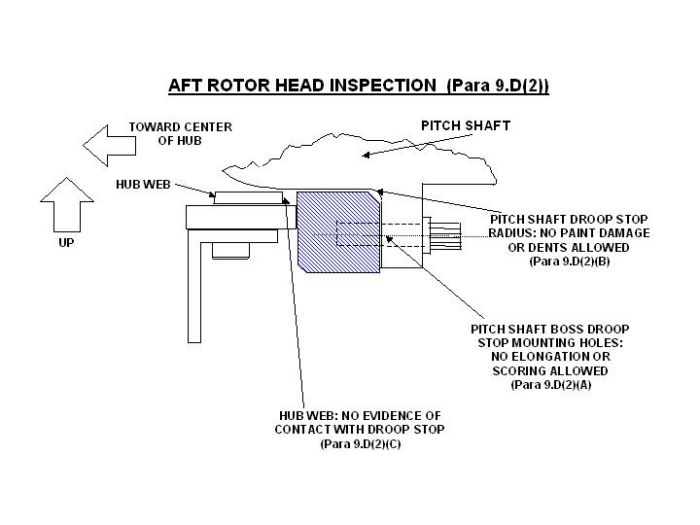

Droop Stop Inspection Diagram - Inspection of Droop Stop during routine maintenance, Phase, Pre-flight, and Daily. Generally applies to the Forward and Aft Heads.
