          Camp Bondsteel, Serbia, Accident Photographs



          The End

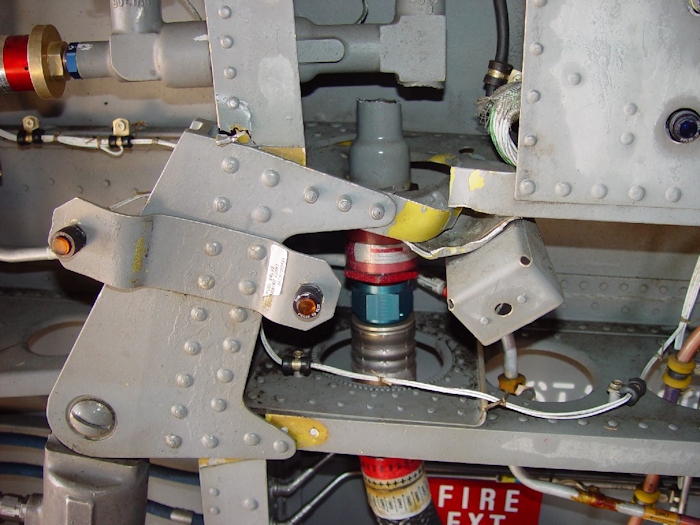

July 2002: Damage to the aircraft as a result of the ramp being too low during the landing sequence is evident in this image. If the ramp is level with the cabin floor a maximum of 15 degrees nose up during landing can be tolerated. If the ramp is lower than floor level a very shallow landing must be made to preclude damage. If the ramp contacts the ground during landing the damage seen here is the result. Additional damage that can lead to a post crash fire is the fracture of the fuel manifold fitting because the manifold is mounted on the same bulkhead immediately above the ramp actuator. At any rate, the number one engine would soon flame out because the fractured fitting is the main fuel supply line for the engine.

             July 2002: Damage to the aircraft as a result of the ramp being too low during the landing sequence is evident in this image. If the ramp is level with the cabin floor a maximum of 15 degrees nose up during landing can be tolerated. If the ramp is lower than floor level a very shallow landing must be made to preclude damage. If the ramp contacts the ground during landing the damage seen here is the result. Additional damage that can lead to a post crash fire is the fracture of the fuel manifold fitting because the manifold is mounted on the same bulkhead immediately above the ramp actuator. At any rate, the number one engine would soon flame out because the fractured fitting is the main fuel supply line for the engine. Click-N-Go Here to view a larger version of this image.






July 2002: A closer look at the fractured fuel fitting.

             July 2002: A closer look at the fractured fuel fitting. Click-N-Go Here to view a larger version of this image.

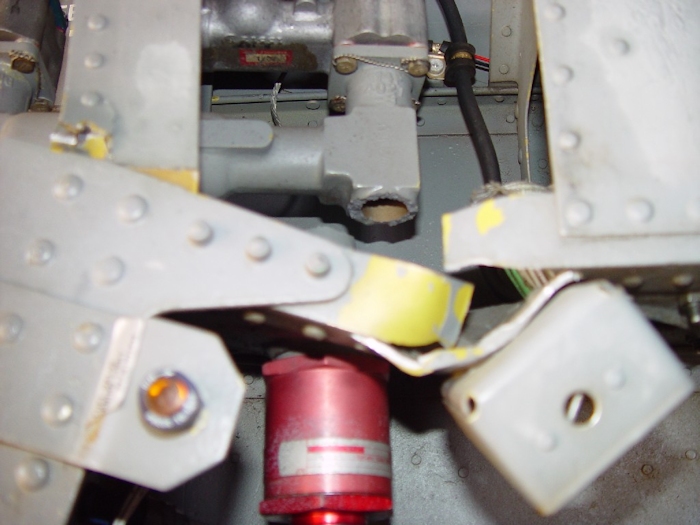

July 2002: A broader view of the damage done to the bulkhead, fuel line fitting and surrounding structure.

             July 2002: A broader view of the damage done to the bulkhead, fuel line fitting and surrounding structure. Click-N-Go Here to view a larger version of this image.

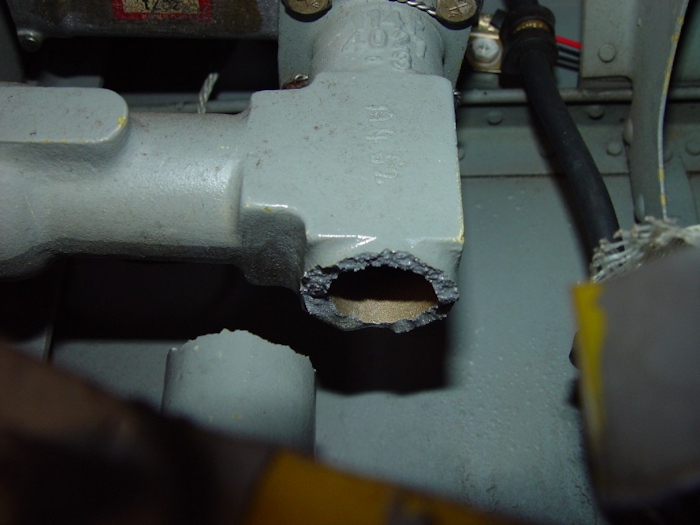

July 2002: An extreme close up view of the fractured fuel fitting.

             July 2002: An extreme close up view of the fractured fuel fitting. Click-N-Go Here to view a larger version of this image.

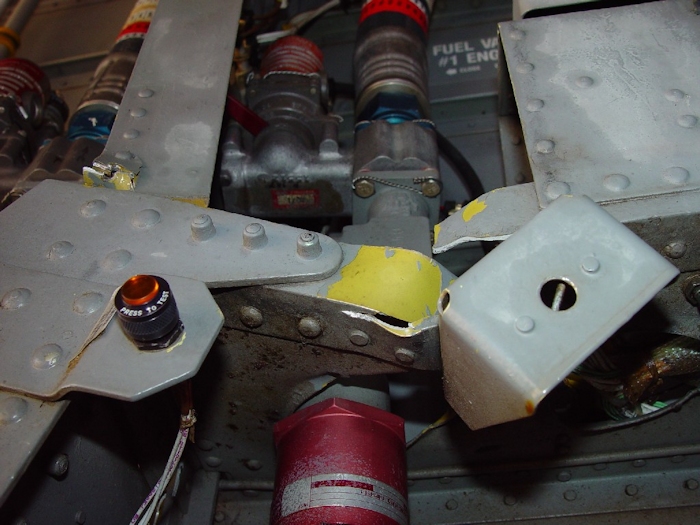

July 2002: Another view of the damage done to the bulkhead and fuel fitting.

             July 2002: Another view of the damage done to the bulkhead and fuel fitting. Click-N-Go Here to view a larger version of this image.

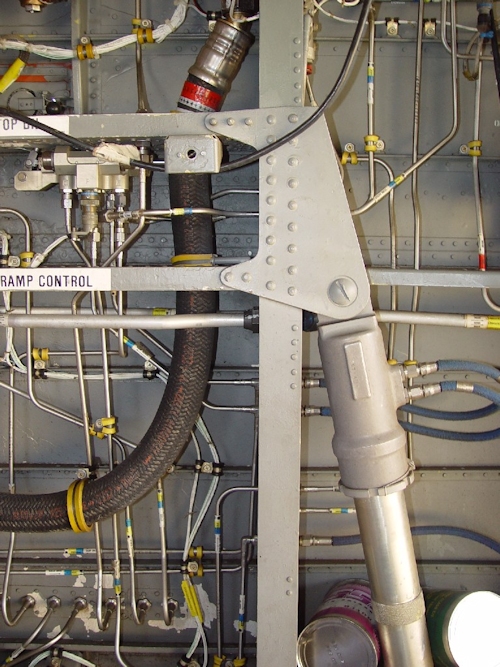

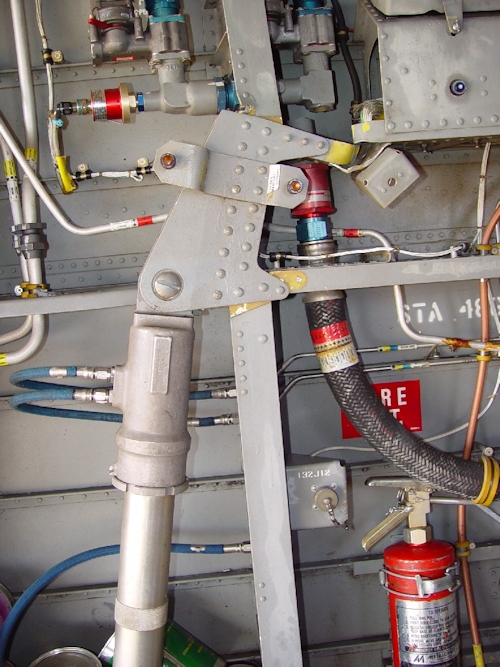

July 2002: An internal view of the right side of the ramp area. It is difficult to determine from the photograph if there was any damage.

             July 2002: An internal view of the right side of the ramp area. It is difficult to determine from the photograph if there was any damage. Click-N-Go Here to view a larger version of this image.
