89-00138





          Camp Bondsteel, Serbia, Accident Photographs



          A Continuing Story of The Day After The Day After Continued, Continued






July 2002: A view from inside the main cabin below the number two hanger bearing where the aft green blade struck the fuselage. With the skin ripped from the airframe, a hole to outside world had developed.

             July 2002: A view from inside the main cabin below the number two hanger bearing where the aft green blade struck the fuselage. With the skin ripped from the airframe, a hole to outside world had developed. Click-N-Go Here to view a larger version of this image.

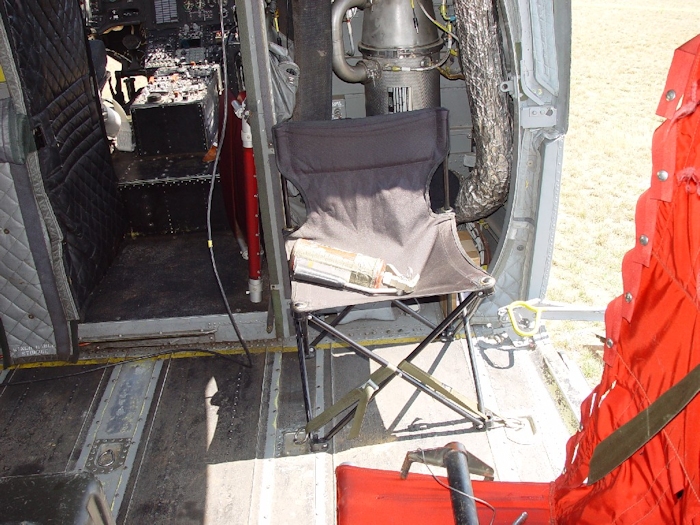

July 2002: The seat pointed out in this, and many other, accident reports over the years as being unauthorized for use by the Flight Engineer or Crew Chief. Crewmembers in the back have had to improvise and accomodate as necessary in order to crew the aircraft with as much comfort as they could muster. More often than not, there was little comfort in the main cabin area. As such, crewmembers would secure a chair to the floor best they could and did so for roughly 40 years. Finally they caught a break when PM Cargo came up with a crash survivable crew seat and it was installed in the front of the cabin on the left and right sides.

             July 2002: The seat pointed out in this, and many other, accident reports over the years as being unauthorized for use by the Flight Engineer or Crew Chief. Crewmembers in the back have had to improvise and accomodate as necessary in order to crew the aircraft with as much comfort as they could muster. More often than not, there was little comfort in the main cabin area. As such, crewmembers would secure a chair to the floor best they could and did so for roughly 40 years. Finally they caught a break when PM Cargo came up with a crash survivable crew seat and it was installed in the front of the cabin on the left and right sides. Click-N-Go Here to view a larger version of this image.

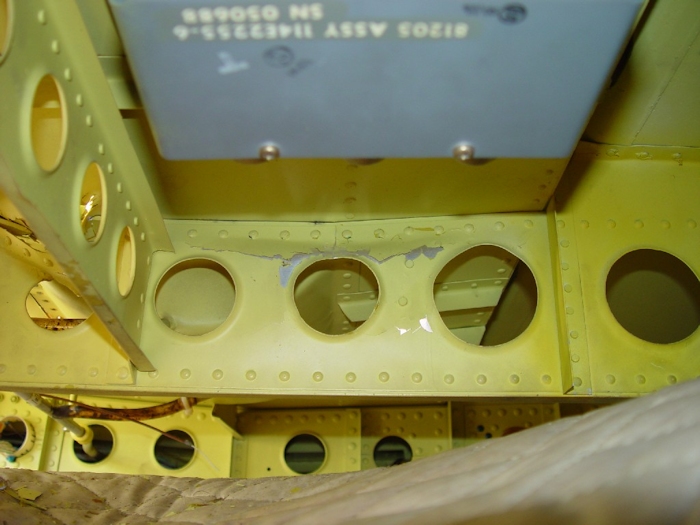

July 2002: Buckling of a bulkhead is apparent in this image in the vicinity of the number two hanger bearing.

             July 2002: Buckling of a bulkhead is apparent in this image in the vicinity of the number two hanger bearing. Click-N-Go Here to view a larger version of this image.

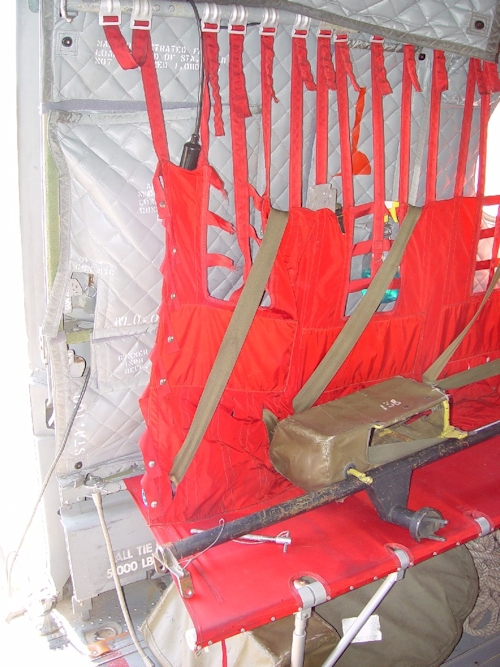

July 2002: The M-24 Machine Gun mount is sitting on the troop seat in the forward cabin next to the main cabin door. When installed for use, the mount will radically impede egress from the helicopter.

             July 2002: The M-24 Machine Gun mount is sitting on the troop seat in the forward cabin next to the main cabin door. When installed for use, the mount will radically impede egress from the helicopter. Click-N-Go Here to view a larger version of this image.






July 2002: The main cabin area of 89-00138 looking forward from the ramp.

             July 2002: The main cabin area of 89-00138 looking forward from the ramp. Click-N-Go Here to view a larger version of this image.






You are on page 7.

Read more, just Click-N-Go to the next page:

1   2   3   4   5   6   7   8   9   10





          Click-N-Go Here to return to the main page for 89-00138.
