Disposition of the CH-47A Helicopters

          In service to the United States Army

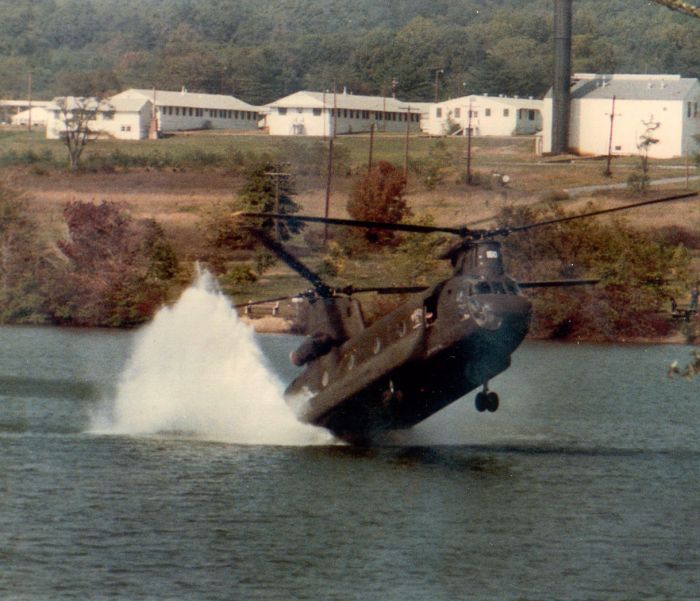

An A model once belonging to the Army National Guard, Fort Indiantown Gap, Pennsylvania.

             Conducting water landings in an A model Chinook that once belonged to the Army National Guard, located at Fort Indiantown Gap, Pennsylvania.





             As of December 2002, we had generally a good idea what became of most of the A model Chinooks. Unfortunately, 45 airframes remained unaccounted for. Many of the details surrounding the demise of most of the known lost aircraft has remained a mystery.





          Airframe Losses

          [Excluding those lost in the Republic of Vietnam]





          --- Unaccounted For Airframes ---



             The following airframe continued unaccounted for. All that is known about B-001 is that it experienced an accident during the initial ground run. Apparently, the airframe was damaged to the point it would never fly and this resulted in B-002 becoming the first CH-47, then designated as an YHC-1B, to fly. B-001 was tied to the ground and accumulated 3,854.0 hours as a test device. Following that, B-001 was transferred to Aberdeen Proving Grounds, located in Maryland, where ballistic evaluations were conducted. Various items were fired at the helicopter to evaluate the impact. It is assumed that upon completion of those tests, it was scraped:




59-04982



             The following five airframes continued unaccounted for, and it was assumed that they were scraped:




59-04983 59-04985 60-03448 60-03452 61-02418





          --- Tested To Destruction ---



             One airframe was tested to destruction without ever attaining any flight time:




B-006





          --- Sold To Thailand ---



             Two airframes were sold to Thailand:




64-13136 64-13148



             Note: Additionally, 64-13140 was sold to Thailand, but was returned at some point and converted into a D model.





          --- Foreign Sales ---



             One airframe was sold to the United Kingdom and was otherwise unaccounted for:




61-02414





          --- Museum Exhibits ---



             As of 28 February 2006, six A models were known to exist. Two were undergoing restoration as museum exhibits 1. The remaining four airframes, one of which was converted to the BV-347 2, were located in museums:




59-04984 1 59-04986 1 60-03451 61-02408 64-13149
65-07992 2





          --- Airframes Lost Due To Accidents ---





          --- West Germany ---



             On or about 17 February 1971, one airframe, was lost in an accident (details unknown):




66-00121





          --- CONUS Accidents ---



             Six airframes were lost in the Continental United States (CONUS) (details unknown):




61-02411 62-02120 62-02125 62-02126 62-02134
66-19005



             On or about 22 November 1974, one aircraft was destroyed in a ground accident while aft rotor blade tracking was in progress:




66-00118



             On 20 August 1979, one airframe was lost due to an accident. While flying in support of exercise Brave Shield XXI near Yakima, in the State of Washington, the aircraft took off at night with ground fog in the area. Almost immediately after takeoff, the aircraft impacted a 7 degree slope in it's takeoff path:




65-08001



             On or about 31 October 1963, one airframe was lost due to an accident during a Boeing company test flight in CONUS (details unknown):




62-02122





          --- Lost due to Mechanical Failure ---





          --- Republic of Korea (South Korea) ---



             On or about 22 March 1972, one airframe was lost due mechanical failure. The Aircraft Commander (AC) reported to tower there was a chip light on the number 1 engine and it was being shut down. The aircraft was observed to descend, flare abruptly, level off and drop straight down, impacting with very high G force:




65-07973





          --- West Germany ---



             On 18 August 1971, one airframe, assigned to the 4th Transportation Command (TRANSCOM), was lost near Pegnitz due to mechanical failure when the aft rotor system failed, killing all 37 on board:




66-19023





          --- CONUS ---



             One airframe was lost, while assigned to the Test Activity at Fort Rucker, when the aft yellow blade spar failed in-flight:




60-03450



             On 15 April 1969, one airframe was lost due to mechanical failure when the aft rotor system went to full pitch in-flight:




61-02425





          Airframe Losses In The Republic Of Vietnam



             One airframe was lost during an unauthorized flight by an unqualified individual. It was understood that possibly a flight engineer or crew chief took the aircraft out for a joy ride and lost control of the aircraft. It was thought that the crew member failed to turn on the stability augmentation system (SAS):




66-19075





          --- Airframes Lost Due To Accidents ---





          36 airframes were lost due to accidents (details unknown):




62-02121 63-07901 63-07910 63-07913 64-13110
64-13116 64-13131 64-13138 65-07966 65-07988
65-08007 65-08022 66-00067 66-00071 66-00076
66-00083 66-00085 66-00109 66-00111 66-19006
66-19011 66-19019 66-19029 66-19039 66-19045
66-19064 66-19067 66-19069 66-19076 66-19081
66-19083 66-19085 66-19090 66-19091 66-19093
66-19095





             One airframe was lost due to an accident of unknown causes and for many years no sign of the crew or wreckage was found until the crash site was discovered by Vietnamese farmers on or about 4 March 1994:




66-19053





             One airframe was lost when, on takeoff from a confined Pick-Up Zone (PZ), with an internal load of tin panels, settled into the trees coming to rest on it's right side. A fuel cell caught fire:




64-13162





             One airframe was lost when, while on a mission near Nui Dat in support of the Australians, and on approach to a Landing Zone (LZ), when it crashed:




64-13161





             One airframe was lost when, while on a combat re-supply mission, the Rotor RPM drooped during takeoff from a Landing Zone (LZ) and the Rotor Blades hit the trees during the forced landing:




64-13158





             One airframe was lost when, while attempting to land on a foggy mountain top, with an internal load of fuel drums, the aircraft came out of ground effect:




64-13156





             One airframe was lost when, while at a hover preparing to pick up a sling, there was an explosion in the aft pylon:




64-13152





             One airframe was lost due to an accident when it suffered a loss of engine power during approach to landing:




64-13128





             One airframe was lost due to an accident when, after having landed, it was later destroyed by artillery to prevent enemy capture:




64-13153





             Two airframes were lost due to accidents caused by in-flight blade failure:




64-13157 66-00072





             One airframe was lost due to an accident during a maintenance test flight:




66-19001





             One airframe, a Guns-A-Go-Go helicopter, was lost in a ground taxi accident:




64-13151





          One airframe was lost in a mid air collision with C7A Caribou:




66-19041





          --- Destroyed By Enemy Action ---





             Nine airframes were destroyed on the ground by enemy satchel charges:




64-13106 64-13146 65-08024 66-19012 66-19013
66-19014 66-19015 66-19016 66-19022





             Two airframes were destroyed by mortar fire on the ground at Red Beach:




64-13139 66-19062





             One airframe blew up on approach. Sabotage was suspected as the cause:




66-19033





          --- Shot Down In Combat ---





          21 airframes were shot down by small arms fire (under 50 Caliber):




64-13107 64-13109 64-13114 64-13124 64-13154
65-07969 65-07976 65-07989 66-00082 66-00084
66-00088 66-00099 66-00105 66-00110 66-19032
66-19046 66-19059 66-19061 66-19065 66-19080
66-19094





             Five airframes were shot down by large caliber fire (.50 caliber or greater):




66-00066 66-19047 66-19050 66-19063 66-19084





             One airframe, assigned to the 237th Vietnamese Air Force (VNAF), was shot down in Cambodia:




66-00112





             Two airframes were shot down by Rocket Propelled Grenades (RPG):




65-07999 66-00120





          Five airframes were shot down by SA-7 Heat seeking missiles:




64-13143 65-07987 66-00091 66-19010 66-19056





             One airframe, a Guns-A-Go-Go Chinook helicopter, shot itself down:




64-13145





             One airframe was brought down when a soldier from the Army of the Republic of Vietnam (ARVN) accidentally dropped a grenade inside the aircraft:




66-00079





             22 airframes were lost due to enemy action at Da Nang and / or Phu Cat (details unknown):




64-13147 64-13163 65-07968 65-07974 65-07975
65-07986 65-07994 65-08021 66-00078 66-00087
66-00094 66-00098 66-00125 66-19002 66-19027
66-19035 66-19042 66-19068 66-19070 66-19078
66-19086 66-19092





          --- Transferred to the VNAF ---



             A total of 34 airframes were transferred to the Vietnamese Air Force (VNAF) near the end of the United States involvement in the Vietnam conflict.



             32 airframes were transferred to the Vietnamese Air Force and continued otherwise unaccounted for:




64-13141 65-07970 65-07972 65-07985 65-07996
65-07997 65-07998 65-08000 65-08006 65-08016
65-08025 66-00068 66-00069 66-00070 66-00073
66-00080 66-00081 66-00086 66-00092 66-00095
66-00096 66-00100 66-00113 66-00117 66-19003
66-19007 66-19034 66-19037 66-19038 66-19040
66-19079 66-19089





             One airframe transferred to Vietnamese Air Force in November 1972 was later captured by the North Vietnamese near the end of the United States involvement in the Vietnam conflict. The airframe was later rediscovered in 1996 and evaluated by Boeing for possible induction into an airframe rebuild program:




66-19082





             One airframe was transferred to Vietnamese Air Force in November 1972 was later captured by the North Vietnamese near the end of the United States involvement in the Vietnam conflict. After capture in 1975, this helicopter was incorporated into the 917th Mixed Air Regiment of the Vietnam People's Air Force and continued otherwise unaccounted for:




66-19004





          --- Converted To D Model ---





             One airframe was selected as a prototype for conversion from A model to D model:




65-08008





          164 A model Chinook helicopters were converted to D models:




60-03449 61-02409 61-02410 61-02412 61-02413
61-02415 61-02416 61-02417 61-02419 61-02420
61-02421 61-02422 61-02423 61-02424 62-02114
62-02115 62-02116 62-02117 62-02118 62-02119
62-02123 62-02124 62-02127 62-02128 62-02129
62-02130 62-02131 62-02132 62-02133 62-02135
62-02136 62-02137 63-07900 63-07902 63-07903
63-07904 63-07905 63-07906 63-07907 63-07908
63-07909 63-07911 63-07912 63-07914 63-07915
63-07916 63-07917 63-07918 63-07919 63-07920
63-07921 63-07922 63-07923 64-13108 64-13112
64-13113 64-13115 64-13117 64-13118 64-13119
64-13120 64-13121 64-13122 64-13123 64-13125
64-13126 64-13127 64-13129 64-13130 64-13132
64-13133 64-13134 64-13135 64-13140 64-13142
64-13144 64-13150 64-13155 64-13159 64-13160
64-13164 64-13165 65-07967 65-07971 65-07977
65-07978 65-07979 65-07980 65-07981 65-07982
65-07983 65-07984 65-07990 65-07991 65-07993
65-07995 65-08002 65-08003 65-08004 65-08005
65-08009 65-08011 65-08012 65-08013 65-08014
65-08015 65-08017 65-08018 65-08019 65-08020
65-08023 66-00074 66-00075 66-00077 66-00089
66-00090 66-00093 66-00097 66-00101 66-00102
66-00103 66-00104 66-00106 66-00107 66-00108
66-00114 66-00115 66-00116 66-00119 66-00122
66-00123 66-00124 66-19000 66-19008 66-19009
66-19017 66-19020 66-19021 66-19024 66-19025
66-19026 66-19028 66-19030 66-19031 66-19036
66-19043 66-19044 66-19048 66-19051 66-19052
66-19054 66-19055 66-19057 66-19058 66-19060
66-19066 66-19072 66-19073 66-19074 66-19077
66-19087 66-19088 66-19096 66-19097





             The remaining six A model Chinook helicopters were converted to MH-47D models:




64-13111 64-13137 65-08010 66-19018 66-19049
66-19071

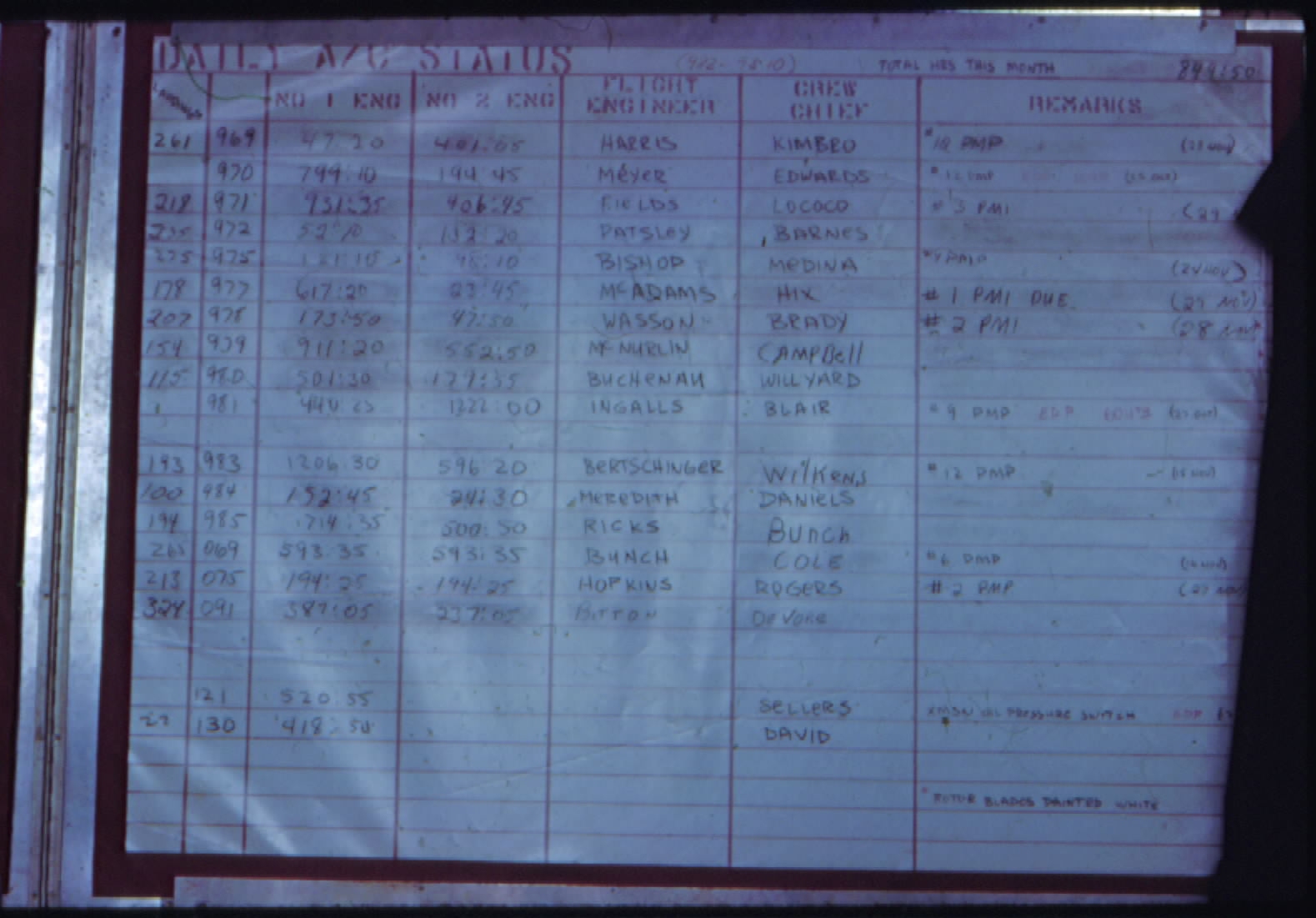

The aircraft status board from the 179th Assault Support Helicopter Company while deployed to the Republic of Vietnam, late 1967.

             The aircraft status board from the 179th Assault Support Helicopter Company - "Shimpboats", while deployed to the Republic of Vietnam, late 1967. Click-N-Go Here to view a larger version.
